Description

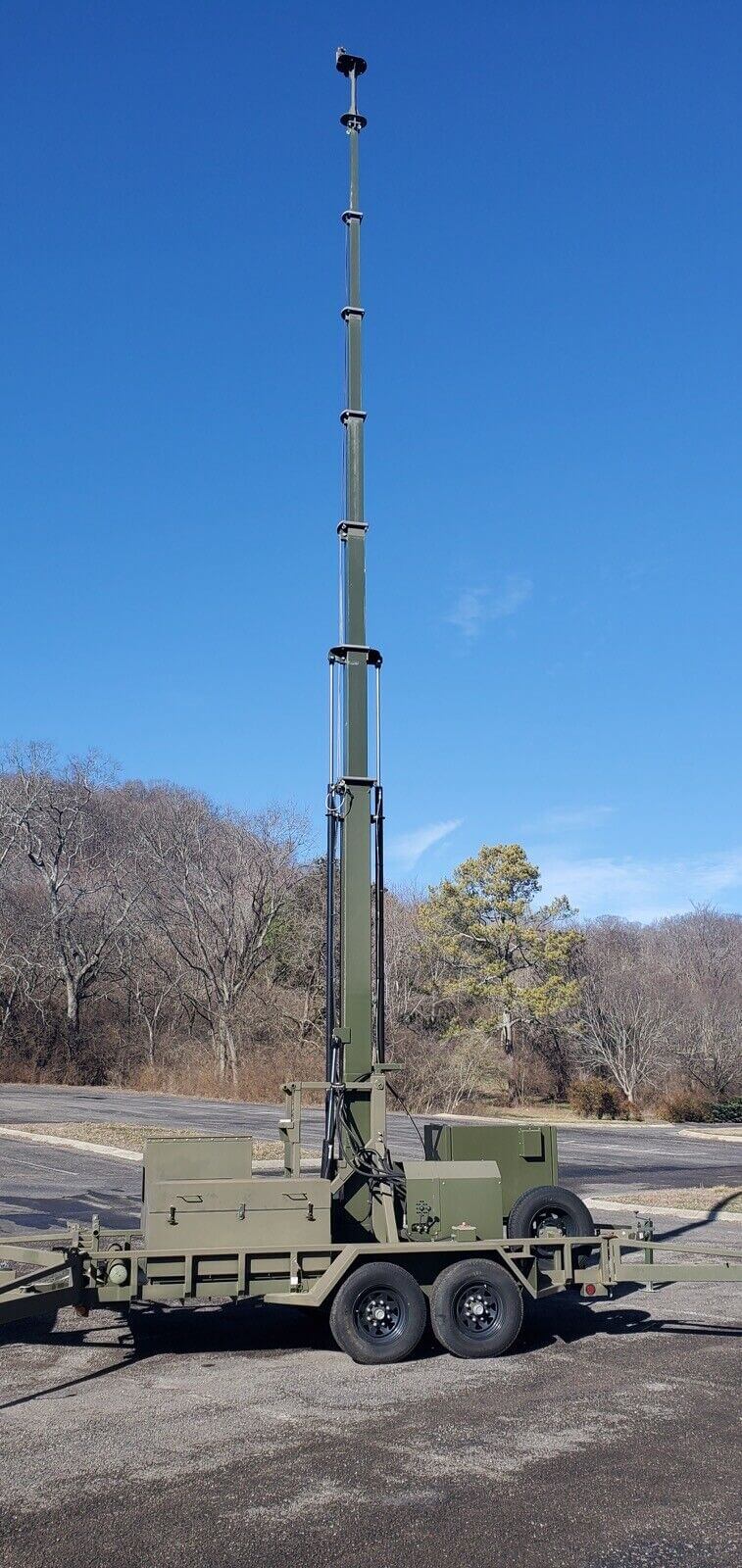

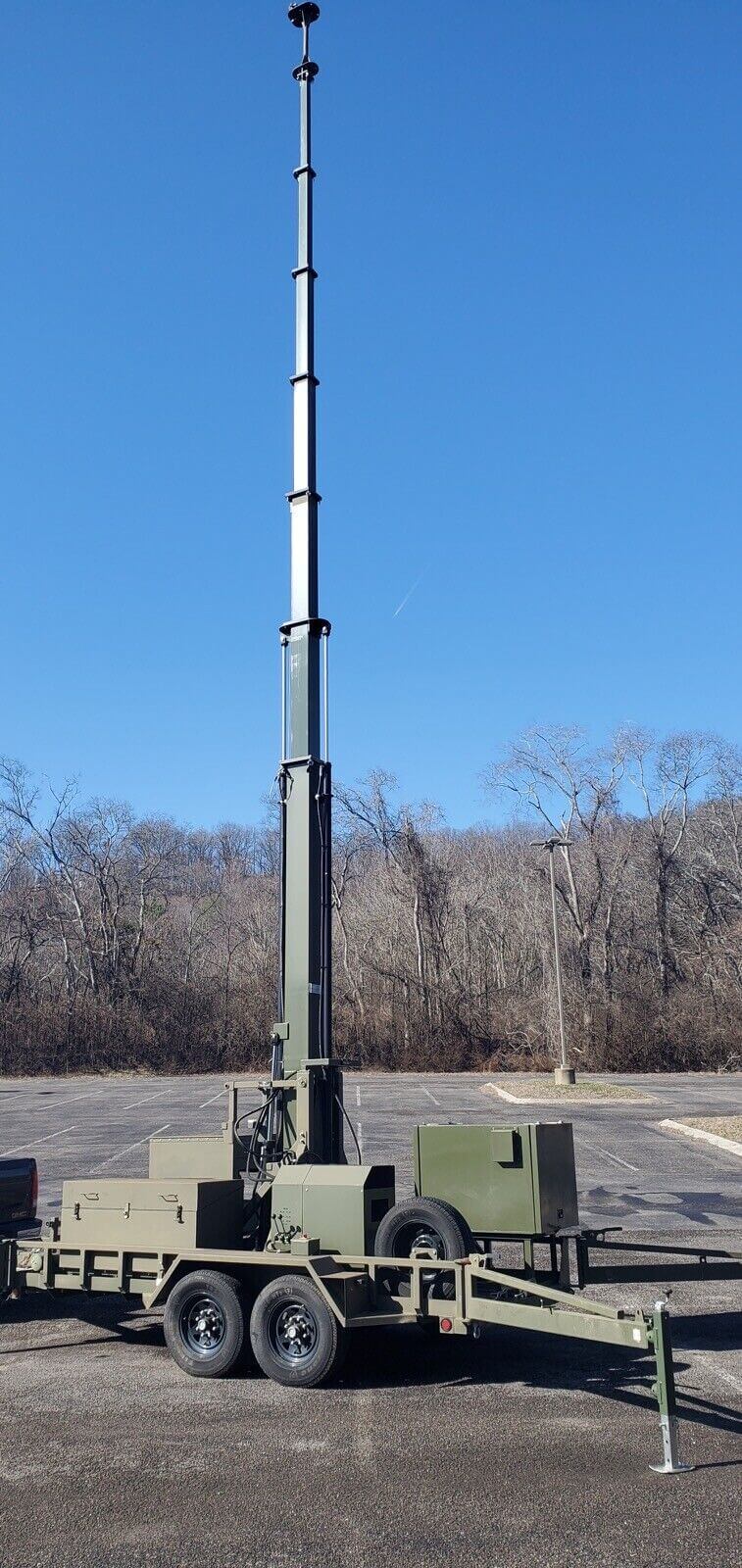

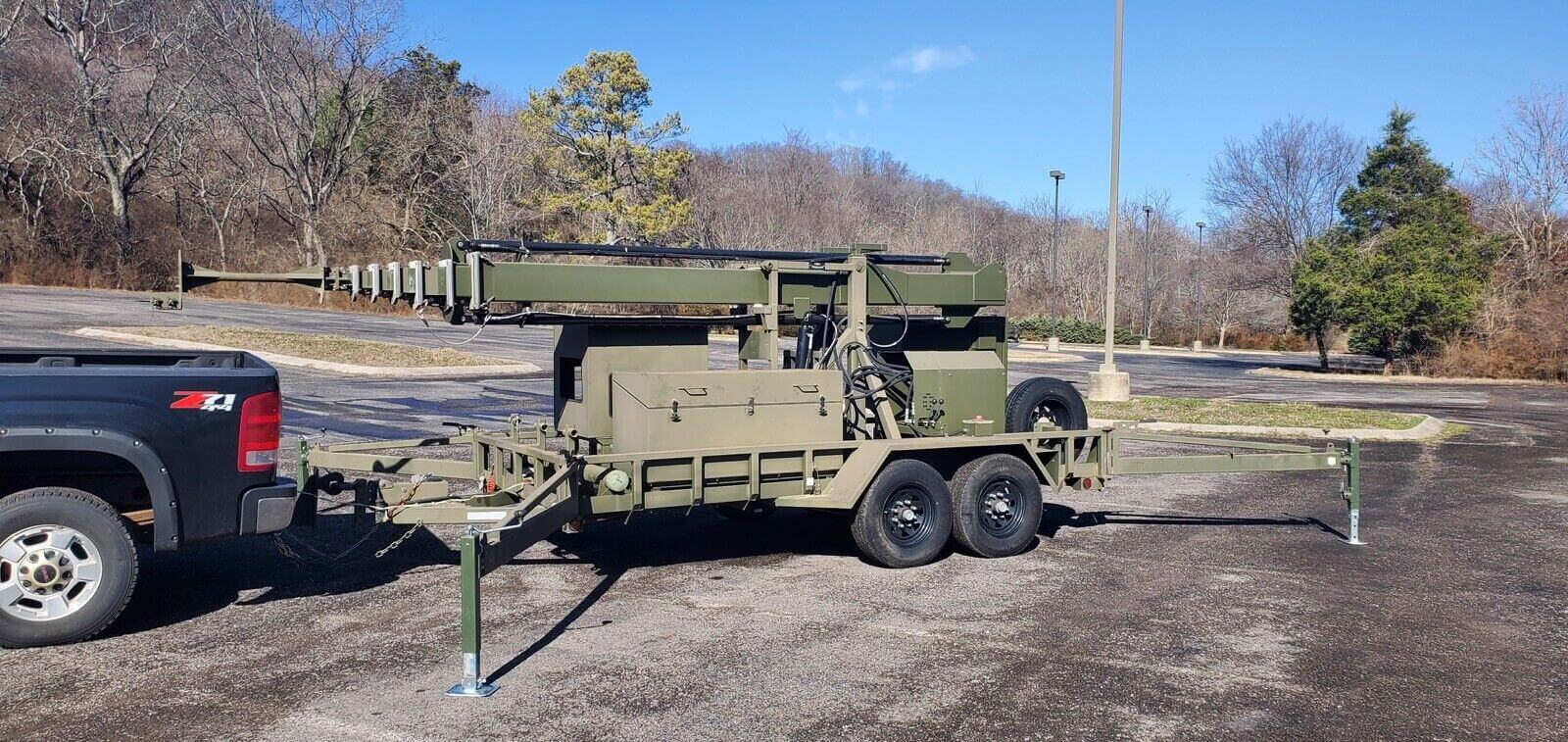

Floatograph FM80-HD-TCE.
This hydraulically driven 80ft tower has been tested and is in excellent physical and working condition.
Mast Height – Mast Capacity feet lbs
10′ 50-450
20′ 50-450
30′ 50-450
40′ 50-450
50′ 50-350
60′ 50-150
70′ 50-100
80′ 50-100
The tower/component rack requires 120v 30amp power. The Harbor Freight Predator 3500 generator in the auction photos/video is not included, the generator enclosure housing is large and can accommodate a Honda EX6500X 6.5k 6500 watt generator. The trailer also has an enclosed Rack Unit (RU Capacity 10-60) cabinet with two sets of exhaust fans and four 120v outlets. Both the rack unit and generator have anti-vibration spring mounts.
Trailer is equipped with Hydraulic Surge Brakes. Current brake light connector is a military style 12-pin connector and will need an adapter or converted to 7-Way connector.
The trailer GVWR is 6532#
The trailer GAWR is 6350# Tongue weight is 940#
